AirPay Payment Gateway

Merchant Workflow

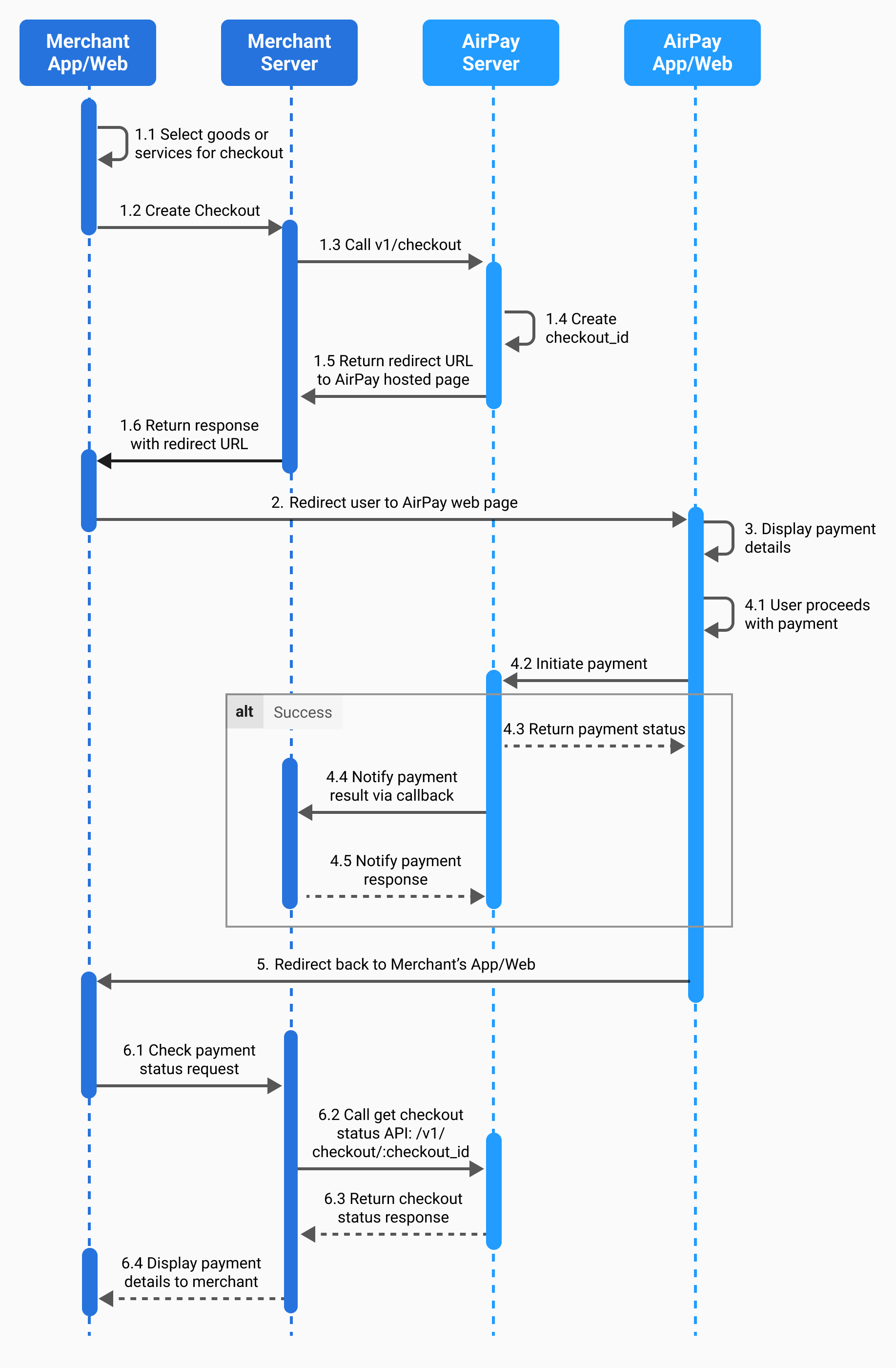

The following figure illustrates the workflow of accepting a payment in the AirPay Payment Gateway payment scenario:

1. After customer selects goods/services and clicks Checkout, merchant backend creates a checkout session by calling AirPay's Create checkout session endpoint.
2. Customer is redirected to either AirPay website to proceed with payment. In case only ShopeePay/SPayLater/Seabank Direct Debit is passed under allowed_payment_method , customer might be able to open Shopee/ShopeePay application directly.
3. Upon landing on AirPay hosted page, customers will be able to confirm payment details (payment amount), select preferred payment method, and apply any relevant promotion.
4. Once customer selects payment method and authorizes payment successfully, Airpay will process and payment redirect users to transaction result page. If transaction result is successful, AirPay will also notify merchant via provided callback url.
5. Customer is then redirected back to the merchant's page to view payment status, as specified by the merchant in the redirect_url of the Create Checkout endpoint. Redirect to return_url_http should never be used as an indication of payment success. The Merchant should only rely on the server request response to check the final status of payment.
6. Merchant can also utilize Get Checkout Status endpoint to query payment status
   • If the returned enum is Successful, merchant can mark this transaction as successful
   • If the returned enum is Expired or Cancelled, merchant mark this transaction as failed.
   • If the returned enum is Active, merchant can take this as payment is still under processing. Merchant is advised to request at an incremental time range of every 5 seconds (e.g., 5 seconds, 10 seconds, 15 seconds, and so on) up to a maximum of 100 seconds. If there is no terminal status after 100 seconds, please retry the request at an incremental time range of every 5 minutes up to 24 hours. Alternatively, merchants can call the Cancel Checkout endpoint to terminate the transaction.

API Documentation

• Getting started
• Create Checkout Session
• Get Checkout Status
• Create Refund
• Get Refund Status
• Cancel Checkout

Getting started with AirPay Payment gateway

Prerequisite

Merchant should fulfil the following requirements to interact with AirPay APIs:

• To be compatible with OAuth 2.0 protocol and HMAC used by AirPay to authorize calls.
• Merchants should use TLSv1.2 or TLSv1.3 for TLS handshake.
• Merchants should integrate directly with ShopeePay endpoints without the use of a SDK.

Onboarding

Once the commercial agreement between partner and AirPay is finalized, each merchant will be assigned the following credentials for integration testing purposes:

Access nodes

AirPay gateway access nodes are country specific, each country will have their own API domains to be called.

API Protocol Rules

The below specifies the rules for calling AirPay APIs:

API Parameters Specification

Request header

All requests will require the following parameter

Request response

The AirPay API response body is in JSON format.

Considerations to take note of in the response body:

• Parameters can be returned in a random sequence.
• Empty parameters may be returned in the following format by default, unless stated otherwise.
• Additional parameters may be returned in future without advance notice from AirPay.
• Merchant system’s logic must not assume that the order of arrangement of response parameters or the total number of parameters returned will remain constant throughout time.

URL Query Parameters

• The URL query parameters can be returned in a random sequence.
• Additional query parameters may be added in the future without advance notice from AirPay.
• Query parameters are case-sensitive.

Security Specifications

Generate HMAC Signature

Signature generation is essential for authenticating API requests between ShopeePay and the merchant. The signature is generated using a confidential shared secret key and algorithm, provided by ShopeePay. Merchants may use the common signature modes such as hash-based message authentication code (HMAC), SHA-256, and Base64.

GO EXAMPLE

import (
    "crypto/hmac"
    "crypto/sha256"
    "encoding/base64"
)
// Sign - sign the `payload` with `key`
func Sign(payload, key []byte) string {
  mac := hmac.New(sha256.New, key)
  // Cannot return error
  if _, err := mac.Write(payload); err != nil {
      return ""
  }
  return base64.StdEncoding.EncodeToString(mac.Sum(nil))
}

Copy

JS EXAMPLE

let hash = CryptoJS.HmacSHA256(body, secret)
let sig = CryptoJS.enc.Base64.stringify(hash).replace(/\n+$/, '')

Copy

Steps to Generate HMAC Signatures

If the request has a body, the request body must be hashed using the SHA-256 algorithm and represented as a base-64 encoded value. To generate a signature, the HTTP request body is hashed using HMAC with the SHA-256 algorithm and the shared secret key, operated on the request JSON to ensure authenticity of the request.

For example, secret: pz148x0gXyPCLHxnlhEydNLg55jni91i

1. Extract the request body to be signed:

JS EXAMPLE

{"request_id": "","store_ext_id": "externalstore","merchant_ext_id": "externalmerchant","amount": 1000,"terminal_id": "terminal","convenience_fee_percentage": 0,"convenience_fee_fixed": 0,"convenience_fee_indicator": "","additional_info": "","currency": "IDR","qr_validity_period": 1000,"payment_reference_id": "testreference"}

Copy

1. Hash the JSON content by using the SHA256 algorithm

JS EXAMPLE

5f5532bf23018674788770f43743522dff1af5782243fab06b1e8677a7391d4c

Copy

1. Encode to Base64

JS EXAMPLE

X1UyvyMBhnR4h3D0N0NSLf8a9XgiQ/qwax6Gd6c5HUw=

Copy

Signature validation

Upon receiving the API response, the Merchant should validate the signature of the response:

1. Use the shared secret to sign the response body to obtain the response signature.
2. Compare the generated signature to the signature in the header of the API response.
3. Signatures from steps #1 and #2 must be identical. If they are different, the response should not be trusted.

To assist with signature validation, you can use online tools such as base64encode.org. These tools provide a convenient way to decode and verify signatures during the API integration process.

Request Header

Include the signature in the request. The signature should be added in the HTTP header in the following format:

SH EXAMPLE

X-Airpay-ClientId: <clientid>
X-Airpay-Req-H: <request_signature>

Copy

Backward Compatible Changes

Backward compatible or non-breaking changes refer to API changes that allow the integration to continue using the API without any additional changes required at Merchant’s side. ShopeePay may make such changes on their sole discretion without informing the existing Merchants in advance, as such changes are deemed to not break any integration implemented by the Merchant.

AirPay considers the following changes as non-breaking:

• Add new API resource or new types of server callback to a new endpoint.
• Add new or remove optional field to existing API request parameters.
• Add new fields to existing API response/server callback parameters.
• Increase or decrease the max length limit of existing fields on existing API response / server callback parameters.
• Change the order of fields in existing API responses or server callback parameters.
• Increase the max length limit of request fields on existing API request parameters.

Create Checkout Session

Use this endpoint to create a checkout session. This is required to obtain AirPay redirection url.

• URL: "/v1/checkout"

Request parameter

Sample request

JS EXAMPLE

{
    "reference_id": "webhost165",
    "merchant_ext_id": "testxxxpg",
    "store_ext_id": "testxxx",
    "amount": 100000,
    "currency": "IDR",
    "return_url": "https://www.google.com",
    "validity_period": 7200,
    "allowed_payment_method": [
        "spay_later"
    ],
    "items": [
        {
            "name": "item1",
            "quantity": 1,
            "price": 100000
        },
        {
            "name": "shipping",
            "quantity": 1,
            "price": 100,
            "category": "fee"
        },
        {
            "name": "discount",
            "quantity": 1,
            "price": -100,
            "category": "discount"
        }
    ],
    "customer": {
        "name": "john cena",
        "postal_code": "12345",
        "phone_number": "00810029200006",
        "email": "test@test.com"
    }
}

Copy

Response Parameter

Sample response

JS EXAMPLE

{
    "reference_id": "webhost210",
    "checkout_url": "https://app.test.shopeepay.co.id/u/pay_checkout?type=start&mid=101118779&target_app=shopeepay&_apprl_=%2Frn%2F%40shopee-rn%2Fshopeepay%2FTRANSFER_PAYMENT_SELECTION_CSCANB%3F__anim__%3D2%26entryRefer%3DJumpApp%26mid%3D101118779%26order_key%3DoZu5W5BtnTNN2H3PyD6D2pW2Z8zbg76_XrImjmKjGagP0TLt9YhrThUyIQlzpHS_SgCeh5-26h0ecg%26order_sn%3D110935773598896173%26referrer%3Dexternal%26return_url%3DaHR0cHM6Ly93d3cuZ29vZ2xlLmNvbT9hbW91bnQ9MTAwMDAwJmNsaWVudF9pZD14eHgrdGVzdCtwZytzeW5jK2VzMjIyJnJlZmVyZW5jZV9pZD13ZWJob3N0MjEwJnJlc3VsdF9jb2RlPTIwMyZzaWduYXR1cmU9YUFQTWhEc2IxZlVlaDRFdS1Od29xM2pLUHFIOGpMTG1GanQzcnlHMlJjNCUzRA%253D%253D%26source%3Dweb%26token%3Dxd7iq02mfq15cfhldd1cg&medium_index=xd7iq02mfq15cfhldd1cg&order_key=oZu5W5BtnTNN2H3PyD6D2pW2Z8zbg76_XrImjmKjGagP0TLt9YhrThUyIQlzpHS_SgCeh5-26h0ecg&order_sn=110935773598896173&phone=00810029200006&return_url=aHR0cHM6Ly93d3cuZ29vZ2xlLmNvbT9hbW91bnQ9MTAwMDAwJmNsaWVudF9pZD14eHgrdGVzdCtwZytzeW5jK2VzMjIyJnJlZmVyZW5jZV9pZD13ZWJob3N0MjEwJnJlc3VsdF9jb2RlPTIwMyZzaWduYXR1cmU9YUFQTWhEc2IxZlVlaDRFdS1Od29xM2pLUHFIOGpMTG1GanQzcnlHMlJjNCUzRA%3D%3D&source=web&target=2&token=xd7iq02mfq15cfhldd1cg",
    "checkout_id": "AIRPAY-MTEwOTM1NzczNTk4ODk2MTcz",
    "created_at": "2026-04-20T10:39:54+07:00",
    "expires_at": "2026-04-20T12:39:54+07:00"
}

Copy

Response code

Refer to following table for HTTP error code:

Get Checkout ID Status

Request parameter:

Use the following path to obtain the latest status GET /v1/checkout/:checkout_id where checkout_id is provided in the response of create checkout session API.

Response parameter:

Sample response

JS EXAMPLE

{
    "checkout_id": "AIRPAY-MTEwOTM1NzczNTk4ODk2MTcz",
    "status": "active",
    "created_at": "2026-04-20T10:39:54+07:00",
    "updated_at": "2026-04-20T10:39:54+07:00",
    "checkout_details": {
        "reference_id": "webhost210",
        "merchant_ext_id": "testxxxpg",
        "store_ext_id": "testxxx",
        "amount": 100000,
        "currency": "IDR",
        "return_url": "https://www.google.com",
        "expiry_time": "2026-04-20T12:39:54+07:00",
        "allowed_payment_method": [
            "spay_later"
        ],
        "customer": {
            "name": "john cena",
            "email": "test@test.com",
            "phone_number": "00810029200006",
            "postal_code": "12345"
        },
        "items": [
            {
                "name": "stuff",
                "quantity": 1,
                "price": 100000000
            },
            {
                "name": "ship",
                "quantity": 1,
                "price": 100000,
                "category": "fee"
            },
            {
                "name": "discount",
                "quantity": 1,
                "price": -100000,
                "category": "discount"
            }
        ]
    }
}

Copy

Response code

Refer to following table for HTTP error code for get checkout_id status API:

Create Refund

Use this endpoint to initiate refund of a successful checkout. There are 2 main types of refund:

• Full refund: customer will get back the full payment amount
• Partial refund: multiple partial refund is allowed as long as the sum does not exceed the original payment amount. To prevent potential erroneous handling, merchant is advised to wait for previous refund to complete successfully before creating next partial refund.

Request Parameters:

• URL: "v1/refund"

Sample request

JS EXAMPLE

{
    "original_checkout_id":"AIRPAY-MTEwOTM1NzczNTk4ODk2MTcz",
    "refund_reference_id": "webhostrefund_211",
    "amount": 90000
}

Copy

Response Parameters:

Sample response

JS EXAMPLE

{
    "refund_id": "AIRPAY-MTQ5MDQxMTg0MDEzNjQyODIy",
    "original_checkout_id": "AIRPAY-MTEwOTM1NzczNTk4ODk2MTcz",
    "refund_reference_id": "webhostrefund_211",
    "amount": 90000,
    "created_at": "2026-04-20T11:03:49+07:00",
    "updated_at": "2026-04-20T11:04:02+07:00",
    "status": "successful"
}

Copy

Get Refund Status

Use this endpoint to check status of a refund request.

Request parameters

• Path: "v1/refunds/:refund_id

Response parameters

Sample response

JS EXAMPLE

{
    "refund_id": "AIRPAY-MTQ5MDQxMTg0MDEzNjQyODIy",
    "status": "successful",
    "created_at": "2026-04-20T11:03:49+07:00",
    "updated_at": "2026-04-20T11:04:02+07:00",
    "refund_session_details": {
        "refund_reference_id": "webhostrefund_211",
        "original_checkout_id": "AIRPAY-MTEwOTM1NzczNTk4ODk2MTcz",
        "amount": 90000,
        "currency": "IDR"
    }
}

Copy

Response code

Refer to the below table to interpret response code in get refund status API:

Cancel checkout

Use this endpoint to cancel the checkout using the checkout ID for Create Checkout. Once the checkout_id is cancelled successfully, the corresponding redirect url can no longer be used to make payment.

Request Parameters

• URL: POST /v1/checkout/{checkout_id}/cancel

Response Parameters

Sample response

JS EXAMPLE

{
    "checkout_id": "AIRPAY-MTMwMTM4OTQxMTM0MDY5Mjg2",
    "created_at": "2026-04-20T13:06:15+07:00",
    "updated_at": "2026-04-20T13:07:41+07:00",
    "checkout_details": {
        "reference_id": "webhost212",
        "merchant_ext_id": "testxxxpg",
        "store_ext_id": "testxxx",
        "amount": 100000,
        "currency": "IDR",
        "return_url": "https://www.google.com",
        "expiry_time": "2026-04-20T15:06:15+07:00",
        "allowed_payment_method": [
            "spay_later"
        ],
        "customer": {
            "name": "john cena",
            "email": "test@test.com",
            "phone_number": "00810029200006",
            "postal_code": "12345"
        },
        "items": [
            {
                "name": "stuff",
                "quantity": 1,
                "price": 100000000
            },
            {
                "name": "ship",
                "quantity": 1,
                "price": 100000,
                "category": "fee"
            },
            {
                "name": "discount",
                "quantity": 1,
                "price": -100000,
                "category": "discount"
            }
        ]
    }
}

Copy
